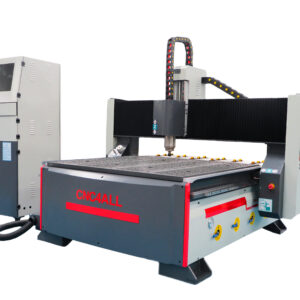

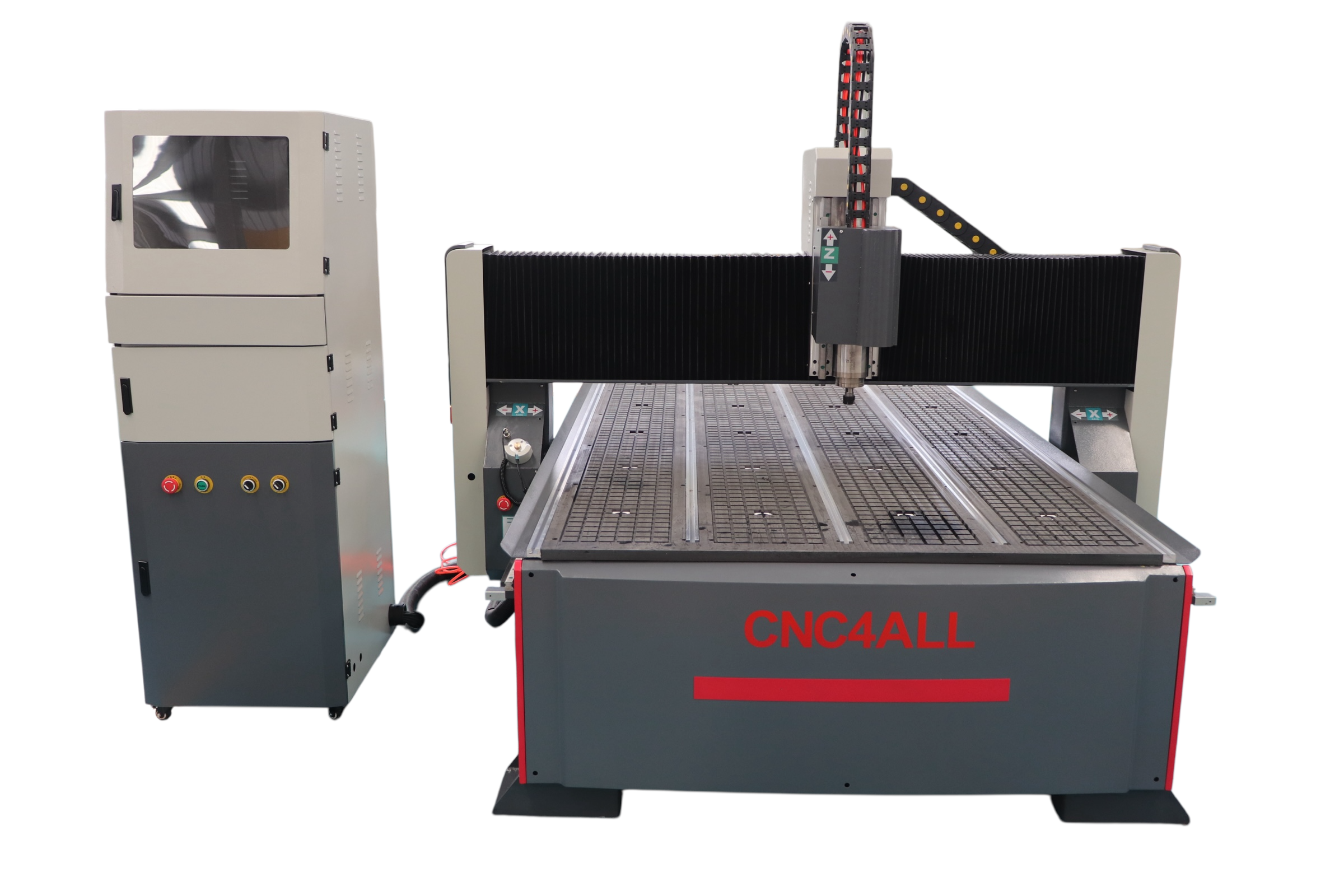

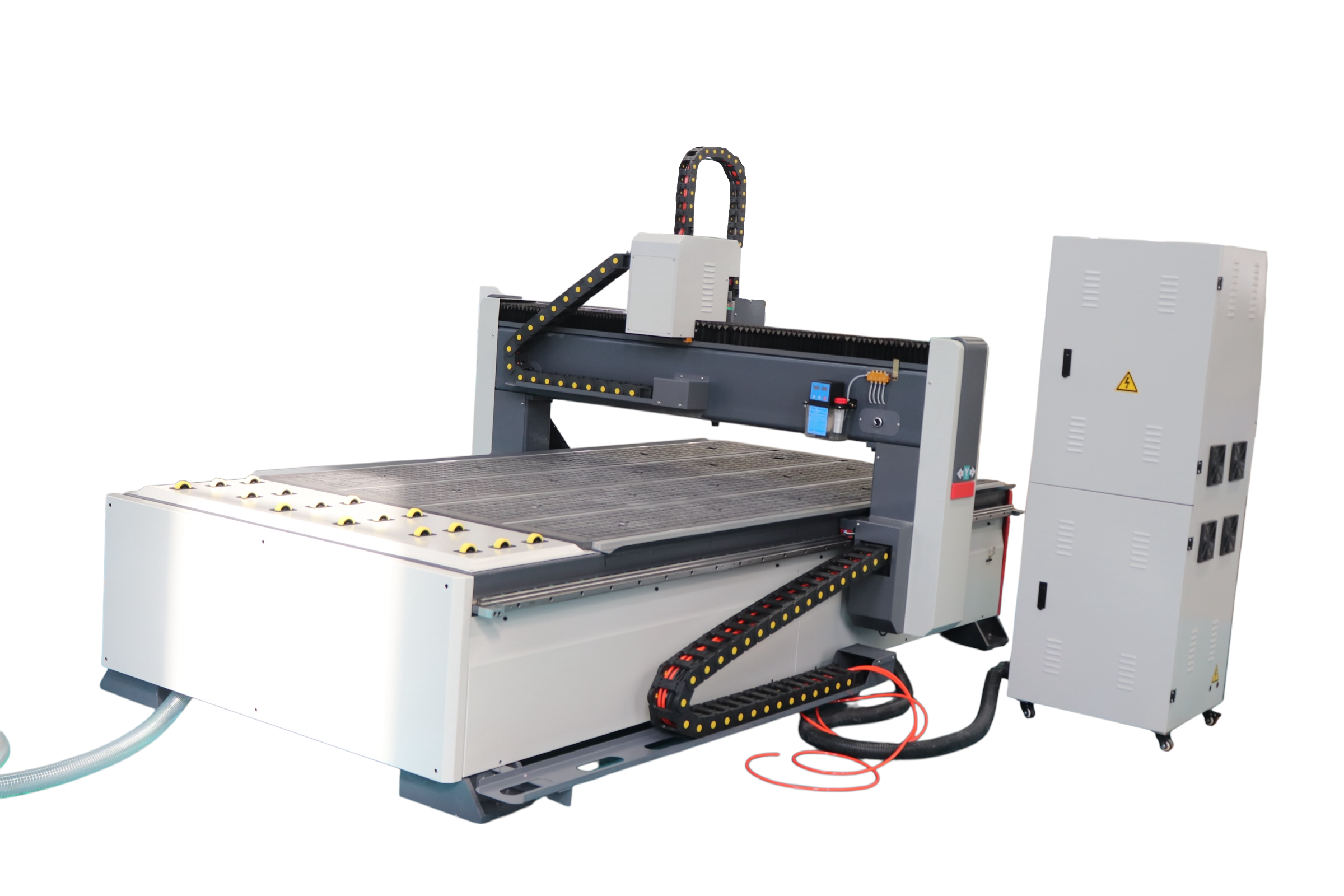

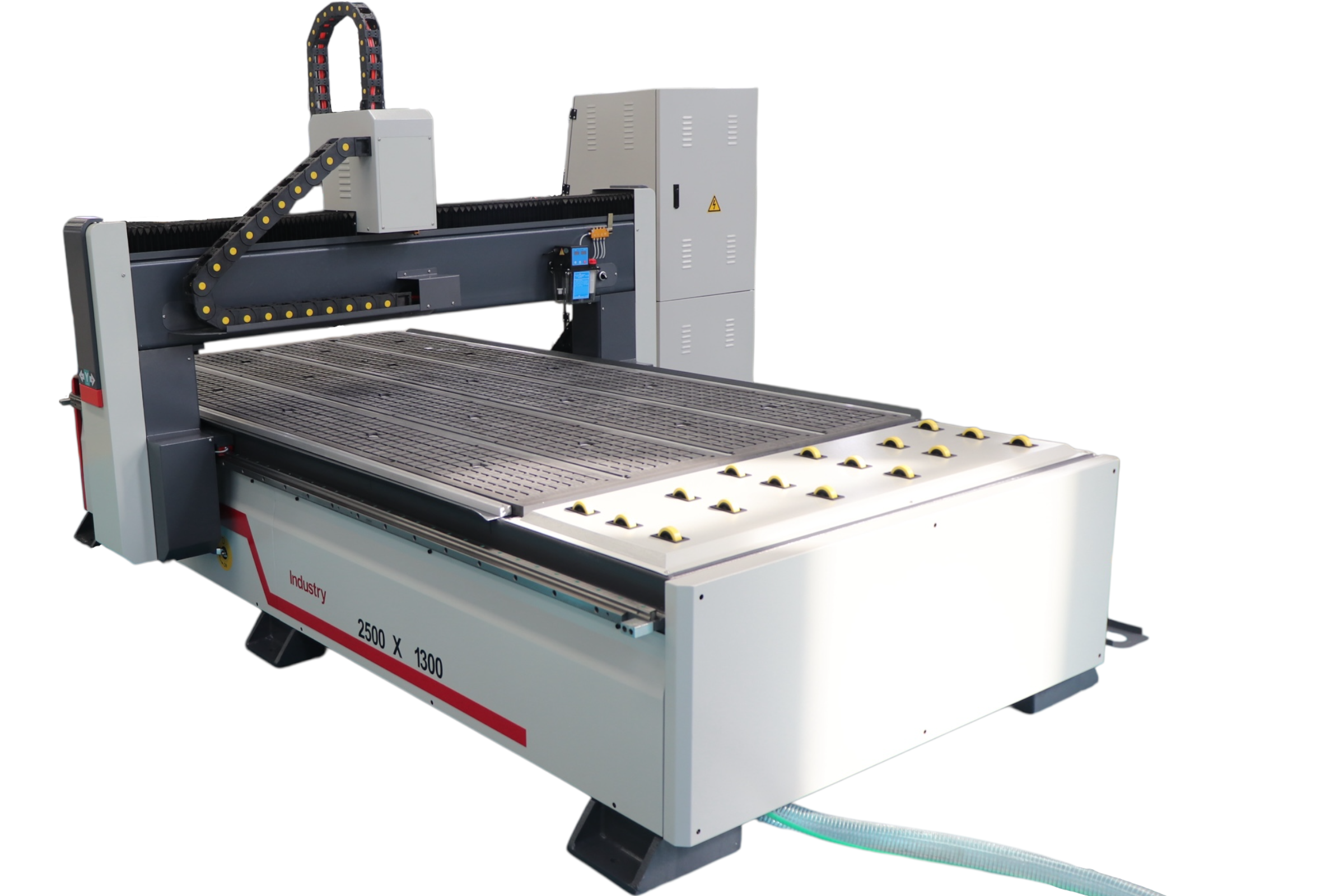

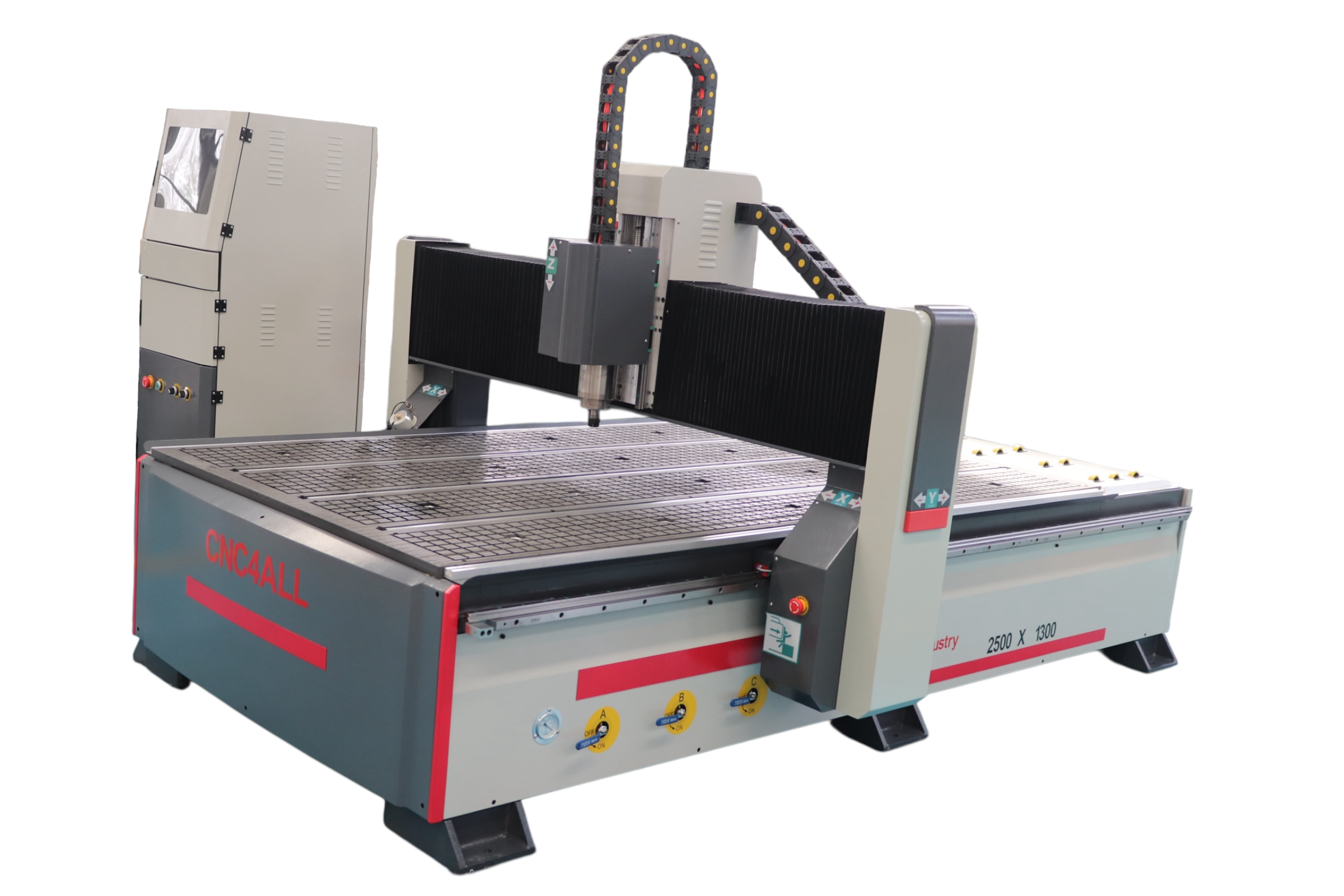

Industry 2500 x 1300

Description

The Industry 2500x1300 CNC Router provides both the professional and semi-professional operator with all technical possibilities to accomplish all their duties highly efficient on one machine.

This machine first was designed for milling big flat things perfectly but smaller higher parts can done with ease too cause of the rigid body of the machine made only from carbon steel and cast iron. With the Industry 2500x1300 CNC Router you are not dealing with a machine which possible suits your needs - it fits perfectly.

The machine table and the substructure are made of steel and therefor give the body a great stiffness during the operation. Hiwin Linear Guide Rails and a rack drive ensure that during operation the machine is very precise.

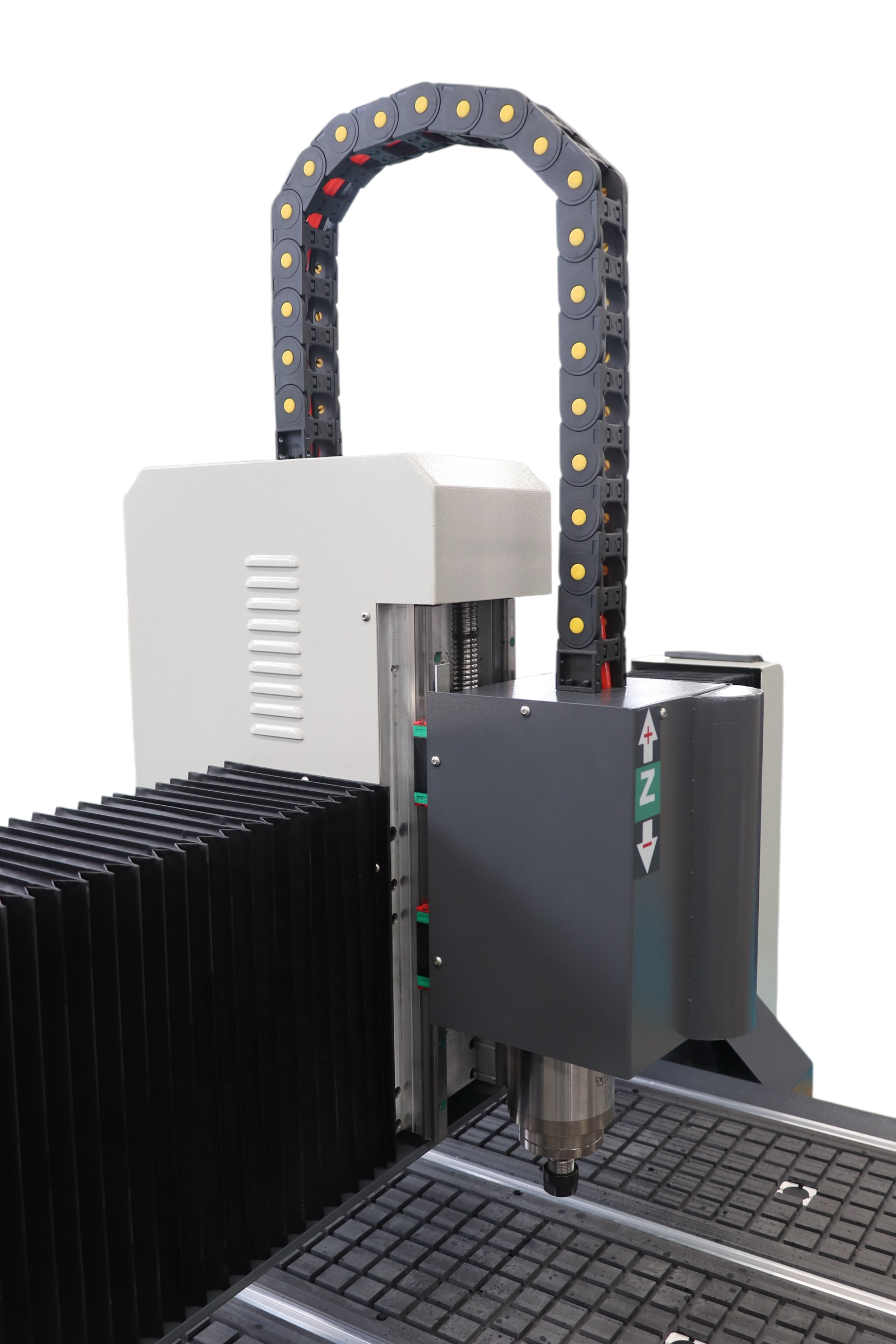

On both sides there are the stepper motors / servo motors (optional) to make sure the transmission is done with ease and accurate. Both sides which carry the portal are made of cast iron, the portal is made from steel. The portal’s transmission is also done by rack drive and Hiwin Linear Guide Rails. The Z-axis uses Hiwin Linear Guide Rails and TBI ball screw spindles for transmission.

Cause of the components mentioned above maximum speed up to 32.000 mm/min is possible when using servo motors.

A dust cover and optional dust collectors are available and also different types and sizes of vacuum pumps which for sure fit all the customers needs.

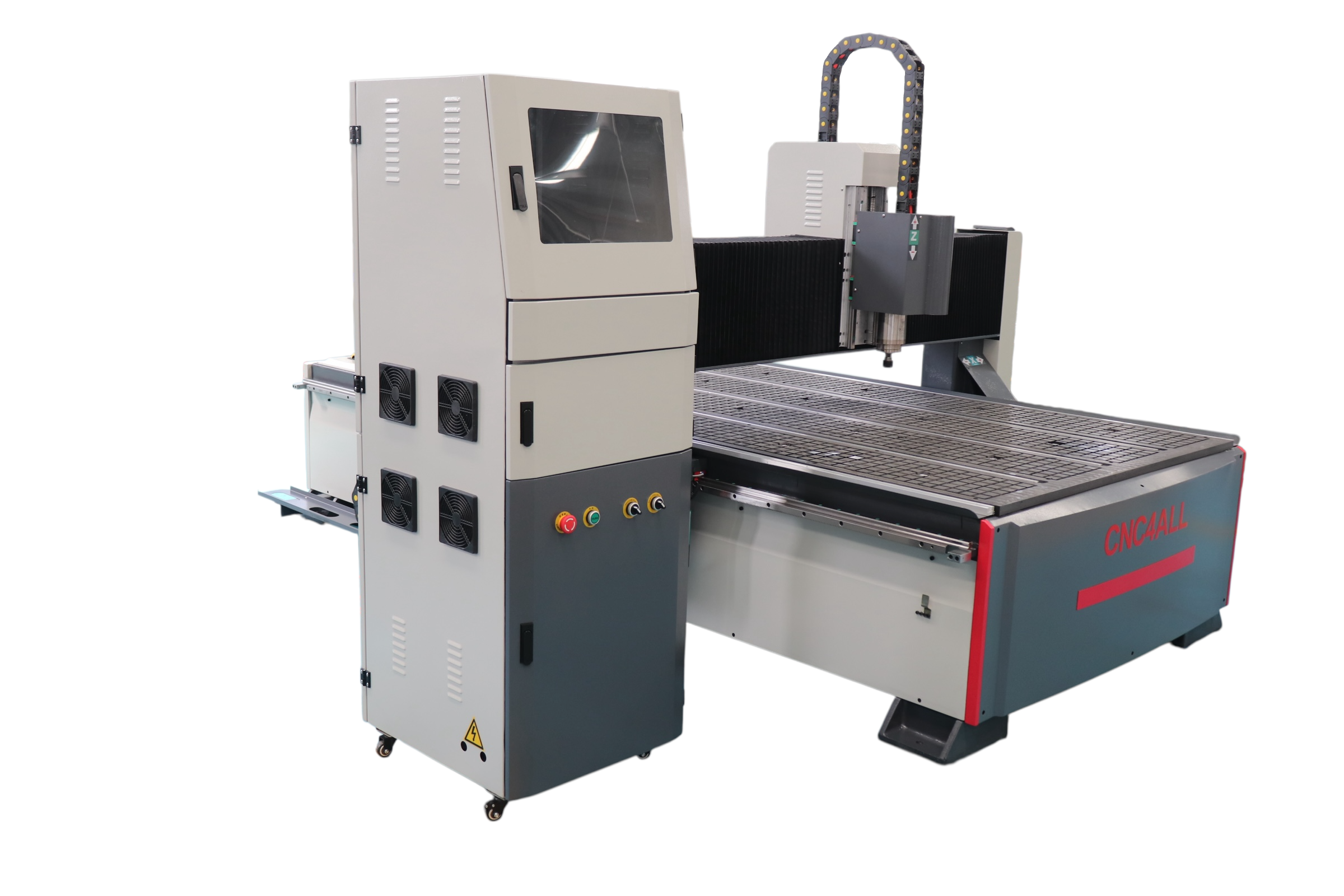

The control unit of the Industry 2500x1300 is housed in an extra case and has enough space for a Laptop (not included). In addition it is possible to integrate a control computer or e.g. a Syntec 6MA control unit in the cabinet.
